UltiDAC Measurements:




















Level

Input

Output

Noise Ref

Noise [A]

THD/THD+N



Noise

-160dBFS

optical

Analog

2.42VRMS

-117.65 dB

-/-

A-weighted



-160dBFS

coaxial

Analog

2.42VRMS

-116.85 dB

-/-

A-weighted

















Crosstalk

-1dBFS

-/-

Analog

2.42VRMS

-113.48

-/-

AES-17

















THD+N

-1dBFS

coaxial

Analog

2.42VRMS

-/-

-103.5 dB

30 kHz

1kHz

-1dBFS

optical

Analog

2.42VRMS

-/-

-103.5 dB

30 kHz



-20dBFS

coaxial

Analog

2.42VRMS

-/-

-86.9 dB

30 kHz



-20dBFS

optical

Analog

2.42VRMS

-/-

-86.9 dB

30 kHz

































Jitter

Jitter Level



Jitter Type

Jitter Freq



THD/THD+N





500ps



Sine

100Hz..80kHz

-103.5 dB





100ps..180ns

Wideband

Wideband



-103.5 dB





180ns..2Ás



Wideband

Wideband



-10dB



















Jitter In -> Out















Jitter Level

AP Input

Jitter Type

Jitter Freq



Jitter Out





500ps

coaxial

Sine

100Hz..80kHz

300ps..400ps





100ps..2Ás

optical

Sine

1kHz



1.25ns..1.3ns





100ps..2Ás

coaxial

Sine

1kHz



300ps..400ps



















coaxial Input

Level

THD+N













1Vpp

-102.2 dB













500mVpp

-103.3 dB













Diagrams:

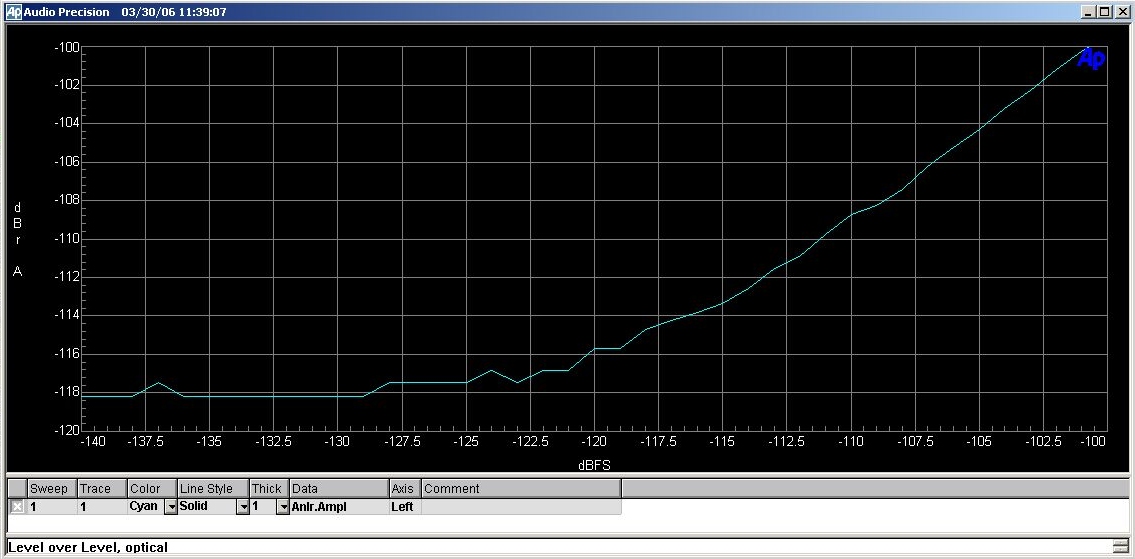

Output Voltage vs. Input Level,  Low Level
Output vs. Input

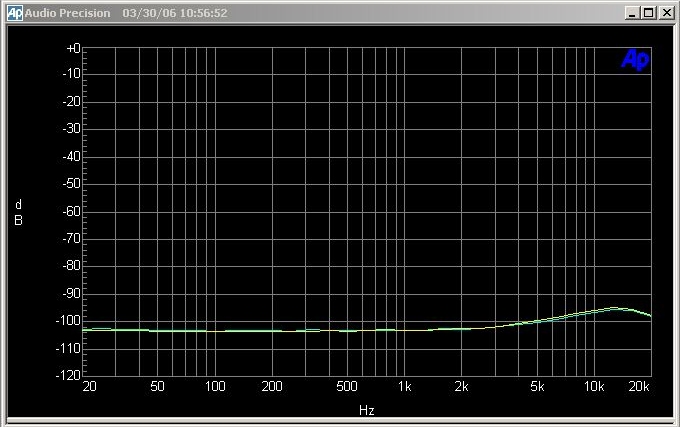

THD+N vs. Frequency, Level=-1dBFS
THD+N vs. Frequency

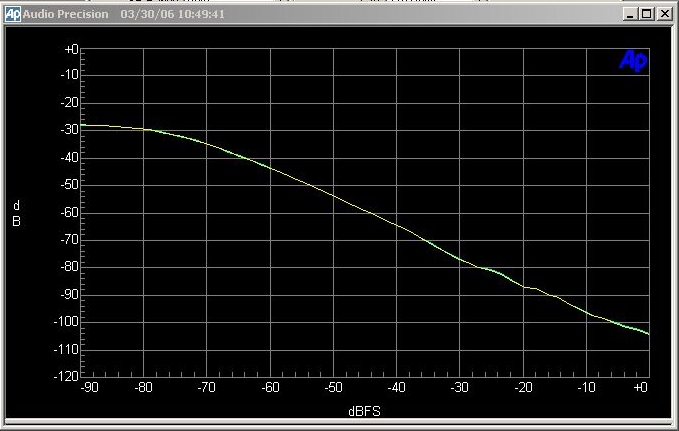

THD+N vs. Level, f=1kHz
THD+N vs. Level




THD+N vs. Level, 16Bit

THD+N vs. Level, 16Bit

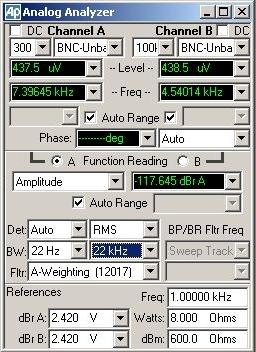

Noise Level:


Noise Level
